import scomv
import stlearn as st
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import cv2
import pandas as pd
import numpy as np
import anndata
import scanpy as sc
import seaborn as sns
from adjustText import adjust_text
from tqdm import tqdm
from scipy.cluster.hierarchy import linkage, dendrogram, ClusterNode, to_tree

# Load Xenium data using stlearn
adata = st.ReadXenium(
    feature_cell_matrix_file="../tutorial_data/xenium_data/cell_feature_matrix.h5",
    cell_summary_file="../tutorial_data/xenium_data/cells.csv.gz",
    library_id="example data",
    image_path=None,
    scale=1,
    spot_diameter_fullres=10
)

Warning: Using default pixel size of 0.2125 microns. Consider providing experiment_xenium_file for accurate pixel size.

# Gridding at 10μm interval using stlearn
N_COL = int((adata.obs.imagecol.max() - adata.obs.imagecol.min()) / 10)
N_ROW = int((adata.obs.imagerow.max() - adata.obs.imagerow.min()) / 10)
grid = st.tl.cci.grid(adata, n_row=N_ROW, n_col=N_COL, n_cpus=10, verbose=False)

from scomv.preparation.skny_calc_distance import calculate_distance

## apply SKNY
grid = calculate_distance(
    grid, pos_marker_ls=['CDH1',"EPCAM"],
)

# Figure 2B
fig, ax = plt.subplots(figsize=(8, 6), dpi=150)
ax.imshow(cv2.cvtColor(grid.uns["marker_median_delineation"], cv2.COLOR_BGR2RGB),
          interpolation="nearest")
ax.axis("off")
plt.show()

#plt.savefig("Figure_2B.png", dpi=300)

# Figure 2B(Zooming and cropping)
import plotly.express as px
import plotly.io as pio
import cv2
import numpy as np

# Convert BGR (OpenCV) image to RGB for Plotly display
img = cv2.cvtColor(grid.uns["marker_median_delineation"], cv2.COLOR_BGR2RGB)

scale = 10  # spatial scaling factor

fig = px.imshow(img)

h, w = img.shape[:2]

# ---- Scale axis tick labels by a factor of 10 ----
step = 200
fig.update_xaxes(
    tickmode="array",
    tickvals=list(range(0, w, step)),
    ticktext=[str(v * scale) for v in range(0, w, step)]
)
fig.update_yaxes(
    tickmode="array",
    tickvals=list(range(0, h, step)),
    ticktext=[str(v * scale) for v in range(0, h, step)]
)

# ---- Create a full-resolution coordinate grid for hover display ----
# xx: scaled x-coordinates for each pixel (shape: h × w)
# yy: scaled y-coordinates for each pixel (shape: h × w)
xx = (np.arange(w)[None, :] * scale).repeat(h, axis=0)
yy = (np.arange(h)[:, None] * scale).repeat(w, axis=1)

# Stack into (h, w, 2) so hover can access scaled x and y
custom = np.dstack([xx, yy])

# ---- Override hover text to show scaled spatial coordinates ----
fig.update_traces(
    customdata=custom,
    hovertemplate="x: %{customdata[0]}<br>y: %{customdata[1]}<extra></extra>"
)

fig.update_layout(
    title="Figure 2B",
    xaxis_title="x",
    yaxis_title="y",
    height=700
)

# Use the notebook-connected renderer for interactive display
pio.renderers.default = "notebook_connected"

fig.show()

# ↓↓ Zooming and cropping are supported interactively ↓↓

# annotation each section to obs object
df_shotest = getattr(grid, "shortest")
df_grid = grid.to_df()

# extract grid info
df_grid = pd.merge(
    pd.DataFrame(index=["grid_" + str(i+1) for i in range(N_ROW * N_COL)]),
    df_grid, right_index=True, left_index=True, how="left"
).fillna(np.nan)

# extract section info
df_region = pd.DataFrame(
    np.array(df_shotest["region"]).reshape(N_ROW, N_COL).T.reshape(N_ROW * N_COL),
    index=["grid_" + str(i+1) for i in range(N_ROW * N_COL)], columns=["region"]
)

# marge
df_grid_region = pd.merge(
    df_grid, df_region,
    right_index=True, left_index=True, how="left"
)
df_grid_region = df_grid_region.dropna()

# add to obs
grid.obs = pd.merge(
    grid.obs, df_grid_region[["region"]],
    right_index=True, left_index=True, how="left"
)

# shaping
grid.obs["region_10"] = [str(i*10) for i in grid.obs["region"]]
grid.obs["region_10"] = ["("+str(int(float(i.split(", ")[0][1:])))+", "+str(int(float(i.split(", ")[-1][:-1])))+"]" if i != "nan" else np.nan for i in grid.obs["region_10"]]
# exclude because of small number
grid.obs["region_10"] = grid.obs["region_10"].replace(
    {"(-150, -120]": np.nan}
)

from scomv.gene import run_full_pipeline

roi_list = [
    (4800, 5900, 950, 1900),
    (6920, 7570, 1910, 2390),
    (5300, 6400, 3050, 3900),
    (6050, 7050, 3910, 5100),
    (3900, 4500, 4600, 5200),
    (2400, 3400, 2400, 3800),
    (2700, 4000, 750, 1690),
    (1000, 2100, 1700, 2500),
    (400, 1500, 3600, 4200),
    (900, 1700, 4200, 5300),

]

results = []
dfs = []

for roi in tqdm(roi_list, desc="Running ROI pipelines"):
    res = run_full_pipeline(
        adata=adata,
        grid=grid,
        roi=roi,
        min_gene_percentile=30,
        max_gene_percentile=95,
        require_moran_nonneg=True,
    )
    results.append(res)
    dfs.append(res["dist_df"])

Running ROI pipelines:   0%|                                                                     | 0/10 [00:00<?, ?it/s]

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  10%|██████                                                       | 1/10 [00:06<00:58,  6.53s/it]/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/scanpy/metrics/_morans_i.py:105: UserWarning:

1 variables were constant, will return nan for these.

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  20%|████████████▏                                                | 2/10 [00:11<00:46,  5.87s/it]/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/scanpy/metrics/_morans_i.py:105: UserWarning:

1 variables were constant, will return nan for these.

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  30%|██████████████████▎                                          | 3/10 [00:19<00:46,  6.64s/it]

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  40%|████████████████████████▍                                    | 4/10 [00:26<00:41,  6.93s/it]/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/scanpy/metrics/_morans_i.py:105: UserWarning:

4 variables were constant, will return nan for these.

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  50%|██████████████████████████████▌                              | 5/10 [00:31<00:30,  6.16s/it]/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/scanpy/metrics/_morans_i.py:105: UserWarning:

1 variables were constant, will return nan for these.

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  60%|████████████████████████████████████▌                        | 6/10 [00:38<00:25,  6.26s/it]

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  70%|██████████████████████████████████████████▋                  | 7/10 [00:45<00:20,  6.79s/it]/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/scanpy/metrics/_morans_i.py:105: UserWarning:

1 variables were constant, will return nan for these.

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  80%|████████████████████████████████████████████████▊            | 8/10 [00:53<00:13,  6.94s/it]

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines:  90%|██████████████████████████████████████████████████████▉      | 9/10 [00:59<00:06,  6.62s/it]

/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/Users/nomura/miniconda3/envs/sc-test310/lib/python3.10/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Running ROI pipelines: 100%|████████████████████████████████████████████████████████████| 10/10 [01:05<00:00,  6.56s/it]

common_genes = set.intersection(*[set(df.index) for df in dfs])

print(f"the number of common genes: {len(common_genes)}")

for i in range(len(dfs)):
    dfs[i] = dfs[i].loc[sorted(common_genes), sorted(common_genes)]

the number of common genes: 157

from sklearn.decomposition import NMF
from scomv.nmf import SymNMF

n_components = 1

W_results = {}
H_results = {}


rng = np.random.default_rng(123)

for i, df in enumerate(dfs):
    min_x, max_x, min_y, max_y  = roi_list[i]

    key = f"{min_x}<x<{max_x}, {min_y}<y<{max_y}"
    A = df.to_numpy()
    sigma = np.abs(rng.normal(scale=0.1, size=A.size)).reshape(A.shape)
    A = A + (sigma + sigma.T)/2

    snmf = SymNMF(k=1, random_state=123)
    snmf.fit(A)

    H_results[key] = snmf.H

feature_matrix = []
keys = []

for key, H in H_results.items():
    mean_vec = H.mean(axis=1)
    feature_matrix.append(mean_vec)
    keys.append(key)

feature_matrix = np.array(feature_matrix)

from sklearn.cluster import KMeans

n_clusters = 3  # define the number of cluster
kmeans = KMeans(n_clusters=n_clusters, random_state=0)
clusters = kmeans.fit_predict(feature_matrix)

print("the result of clustering:", clusters)

the result of clustering: [2 2 2 2 0 0 1 1 1 1]

annotation_dist = {}
annotation_dist["4800<x<5900, 950<y<1900"]= "1 (DCIS)"
annotation_dist["6920<x<7570, 1910<y<2390"]= "2 (DCIS)"
annotation_dist["5300<x<6400, 3050<y<3900"]= "3 (DCIS)"
annotation_dist["6050<x<7050, 3910<y<5100"]= "4 (DCIS)"
annotation_dist["3900<x<4500, 4600<y<5200"]= "5 (DCIS)"
annotation_dist["2400<x<3400, 2400<y<3800"]= "6 (DCIS)"

annotation_dist["2700<x<4000, 750<y<1690"]= "7 (IDC)"
annotation_dist["1000<x<2100, 1700<y<2500"]= "8 (IDC)"
annotation_dist["400<x<1500, 3600<y<4200"]= "9 (IDC)"
annotation_dist["900<x<1700, 4200<y<5300"]= "10 (IDC)"


# ======== Prepare data for clustering ========
feature_matrix = []
keys = []

for key, H in H_results.items():
    # H: shape = (n_components, n_samples)
    mean_vec = H.mean(axis=1)
    feature_matrix.append(mean_vec)
    keys.append(key)

feature_matrix = np.array(feature_matrix)

# ======== KMeans clustering ========
n_clusters = 3
kmeans = KMeans(n_clusters=n_clusters, random_state=0)
clusters = kmeans.fit_predict(feature_matrix)
print("Clustering results (groups of 10 datasets):", clusters)

# ======== Hierarchical clustering ========
labels = [f"ROI{annotation_dist[key]}" for key in keys]
Z = linkage(feature_matrix, method="average")

Clustering results (groups of 10 datasets): [2 2 2 2 0 0 1 1 1 1]

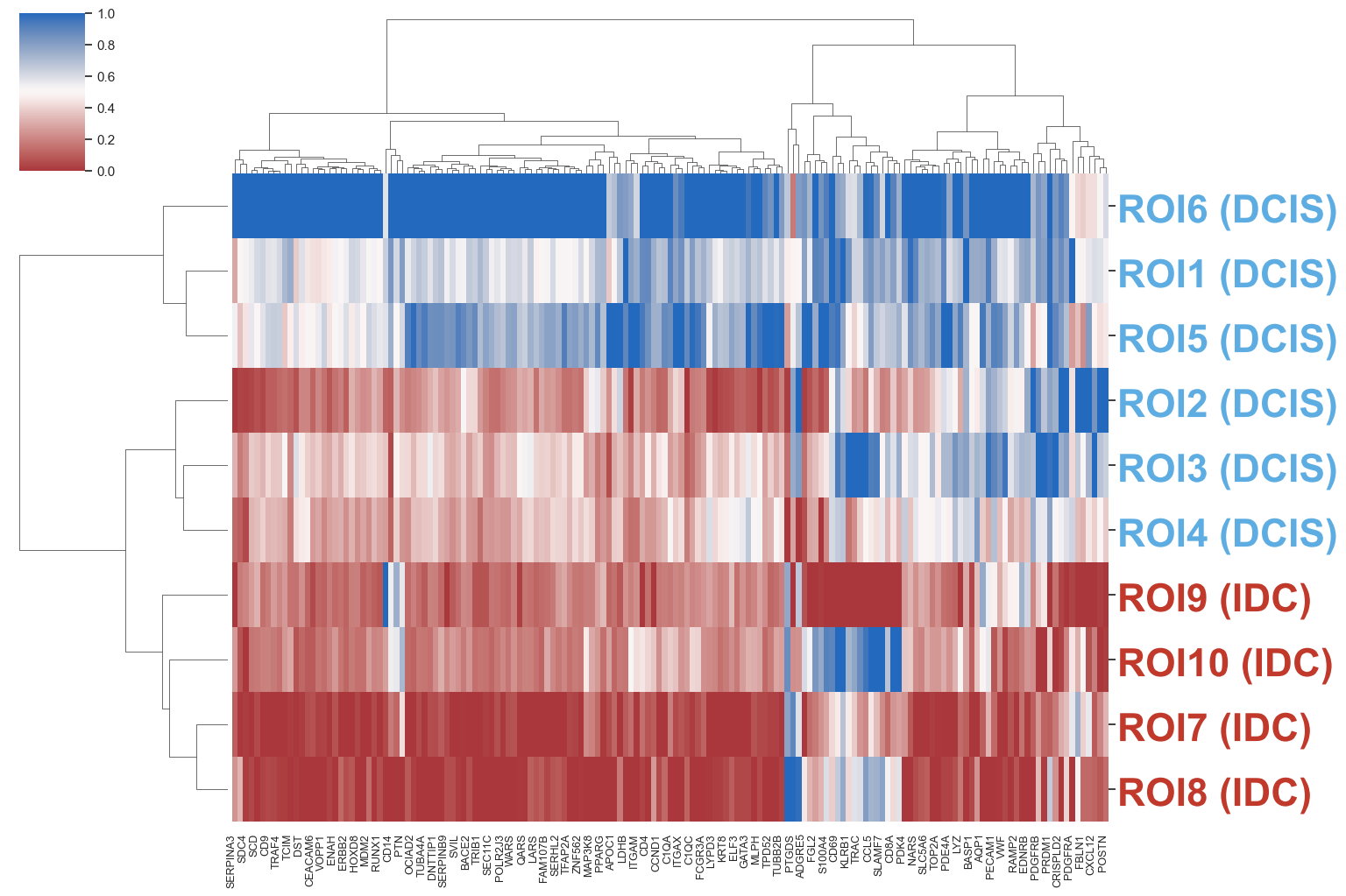

# Figure 4B
import matplotlib.patheffects as pe

df_features = pd.DataFrame(feature_matrix, index=keys)
labels = [f"ROI{annotation_dist[key]}" for key in keys]
new_dict = {i: g for i, g in enumerate(sorted(common_genes))}

cg = sns.clustermap(
    df_features,
    method='ward',
    metric='euclidean',
    cmap='vlag_r',
    standard_scale=1,
    figsize=(15, 10),
    dendrogram_ratio=(0.2, 0.2),
    cbar_pos=(0.02, 0.8, 0.05, 0.18)
)

new_order = cg.dendrogram_row.reordered_ind
ax = cg.ax_heatmap

# ---------- Prepare row labels ----------
yticklabels = [labels[i] for i in new_order]

# Remove original y-axis tick labels
ax.set_yticklabels([])

# Get current y-tick positions (row centers)
yticks = ax.get_yticks()

# Define vertical offset for label positioning
# Positive values shift labels downward
dy = +0.1  # Try values such as -0.1, -0.2, -0.5 if needed

for y, lab in zip(yticks, yticklabels):

    # ---- Color labels by DCIS / IDC ----
    if "DCIS" in lab:
        color = "#5DADE2"
    elif "IDC" in lab:
        color = "#C0392B"
    else:
        color = "black"

    ax.text(
        1.01,
        y + dy,
        lab,
        transform=ax.get_yaxis_transform(),  # x in axes coordinates, y in data coordinates
        ha='left',
        va='center',
        fontsize=32,
        fontweight='bold',
        color=color,
        path_effects=[pe.withStroke(linewidth=2, foreground="white")],
    )

# ---------- Column labels (same as before) ----------
new_order_col = cg.dendrogram_col.reordered_ind
xticklabels = [new_dict[i] for i in new_order_col]
xticklabels_sparse = [
    label if (idx % 2 == 0) else ''
    for idx, label in enumerate(xticklabels)
]

ax.set_xticks(range(len(xticklabels_sparse)))
ax.set_xticklabels(xticklabels_sparse, rotation=90, fontsize=9)

# plt.savefig("heatmap_20251117.png", dpi=300, bbox_inches='tight')
plt.show()

# Figure 4C, D, F, H
from scomv.spatial_deg import Spatial_DEG

report = Spatial_DEG(n_components=5, standardize=True).fit(
    feature_matrix,
    feature_names=list(new_dict.values())
)

sns.set_theme(style="white")

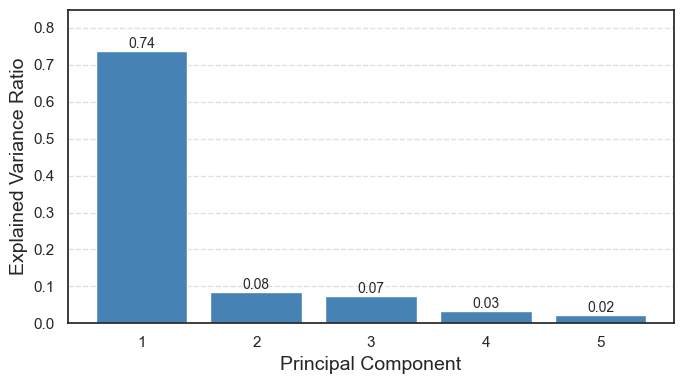

# 1) Cumulative explained variance
report.plot_explained_variance_bar(max_pc=10)

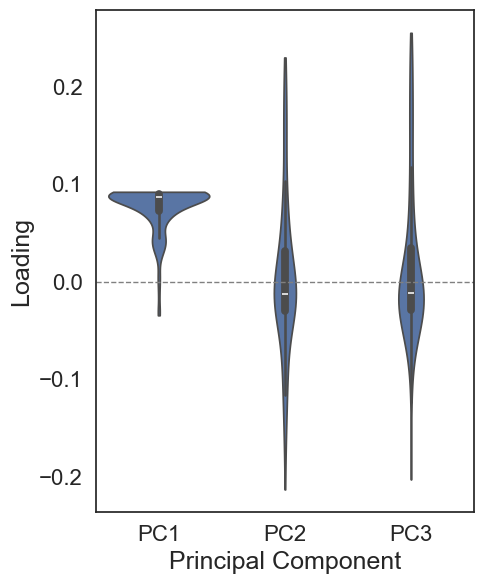

# 2) Violin plots of loadings (PC1–PC3)
report.plot_loading_violin(pcs=(0, 1, 2))

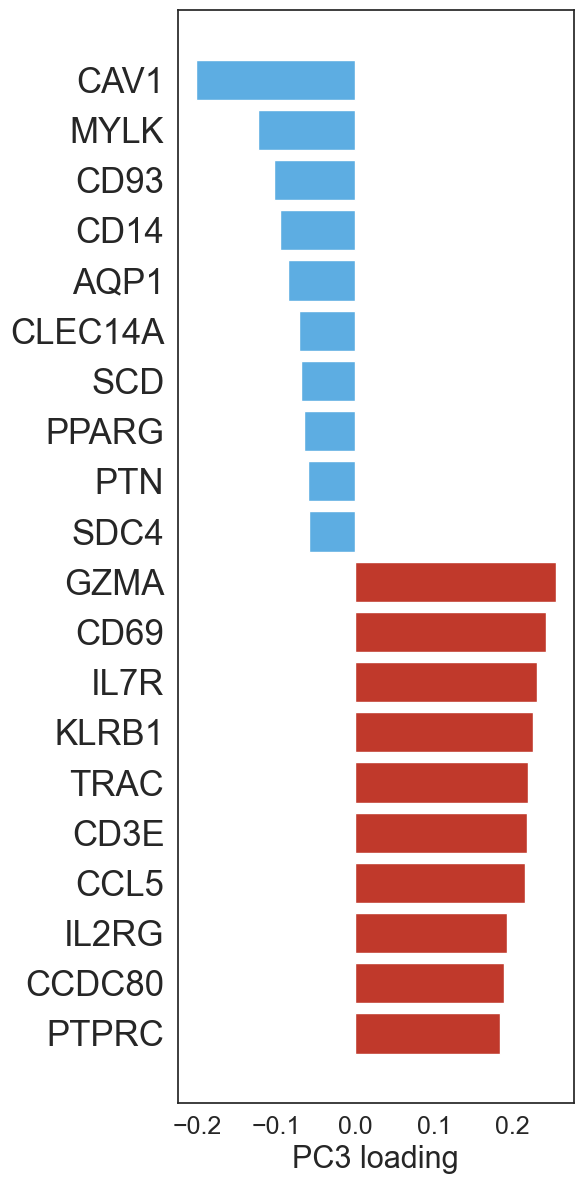

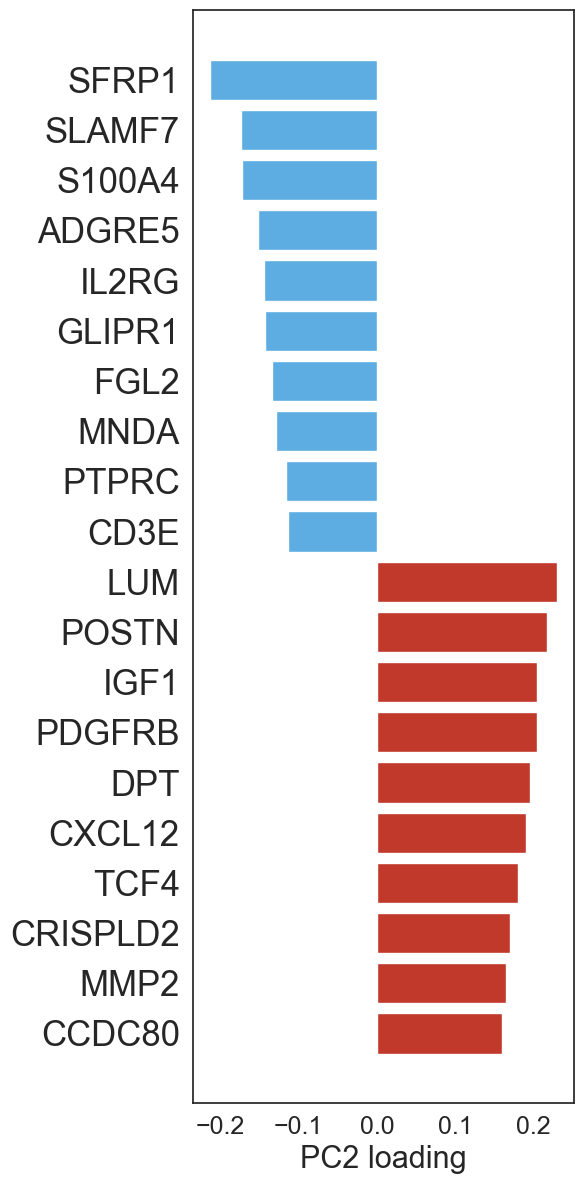

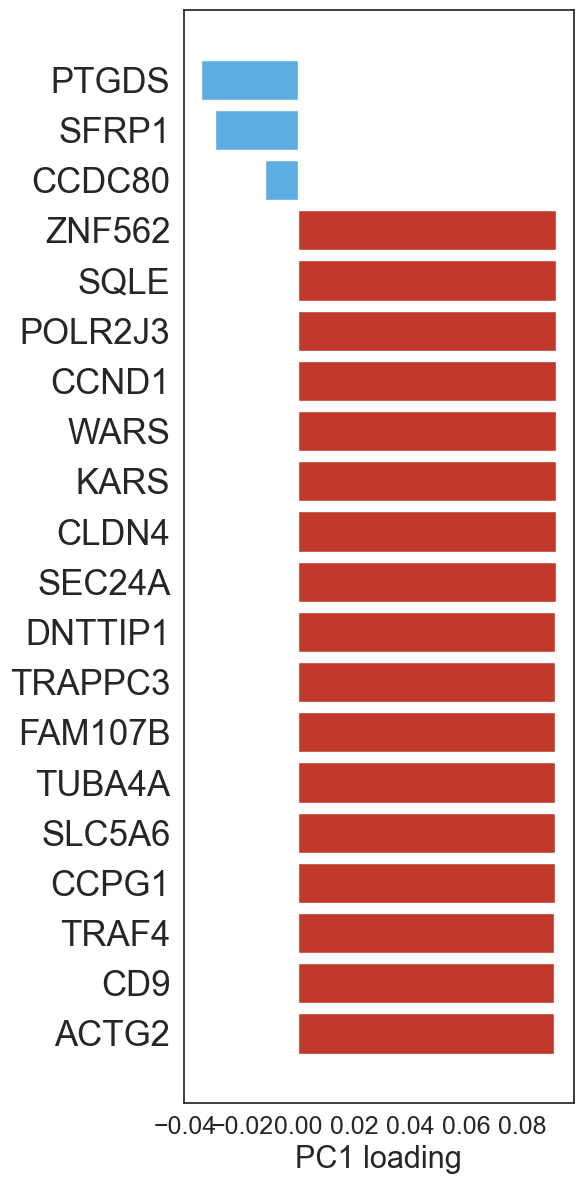

# 3) Signed top contributing genes for PC1, PC2, and PC3 (bar plots)
report.plot_signed_top_contributions_multi(pcs=(0, 1, 2), top_pos=10, top_neg=10)

# Retrieve top positively and negatively contributing genes
top_df = report.get_top_genes_signed(pcs=(0, 1, 2), top_pos=10, top_neg=10)

# Extract unique genes from the top contributors
top_pca_genes = top_df["gene"].drop_duplicates().tolist()

# Exclude PC1 and keep genes ranked within top 5
top_df = top_df[(top_df["PC"] != "PC1") & (top_df["rank"] <= 5)]

# Final list of top PCA-associated genes
top_pca_genes = top_df["gene"].drop_duplicates().tolist()

## Figure 4G

annotation_path = "../tutorial_data/breast_gene_annotate.csv"
annotate_df = pd.read_csv(annotation_path)

# ここは列名が分かってるなら列名で取るのが安全
# 例：gene列=0, clu_num列=1 と仮定（あなたのコードに合わせる）
gene_col = annotate_df.columns[0]
clu_col  = annotate_df.columns[1]

# clu_num を数値化（NaNはNaNのままにする）
clu_num = pd.to_numeric(annotate_df[clu_col], errors="coerce")
genes   = annotate_df[gene_col].astype(str)

# 1–6 をラベル文字列へ（必要な分だけ）
clu_to_anno = {
    1: "peripheral",
    2: "internal",
    3: "low",
    4: "ubiquitous (include internal)",
    5: "ubiquitous (not include internal)",
    # 6 があるならここに追加
}


# gene -> annotation の辞書（common_genes に限定）
anno_map = {}
for g, c in zip(genes, clu_num):
    if pd.isna(c):
        continue
    c = int(c)
    if c in clu_to_anno and g in common_genes:
        anno_map[g] = clu_to_anno[c]

loadings = report.loadings_

pc_df = pd.DataFrame({
    "PC2": loadings[:, 1],
    "PC3": loadings[:, 2],
    "feature": report.feature_names_
})

fig = px.scatter(
    pc_df,
    x="PC2",
    y="PC3",
    hover_name="feature",
    title="PC2 vs PC3"
)

evr = report.pca_.explained_variance_ratio_
pc2_value = round(evr[1] * 100, 2)
pc3_value = round(evr[2] * 100, 2)

fig.update_layout(
    xaxis_title=f"PC2 loading ({pc2_value}%)",
    yaxis_title=f"PC3 loading ({pc3_value}%)",
    height=600
)

fig.show()

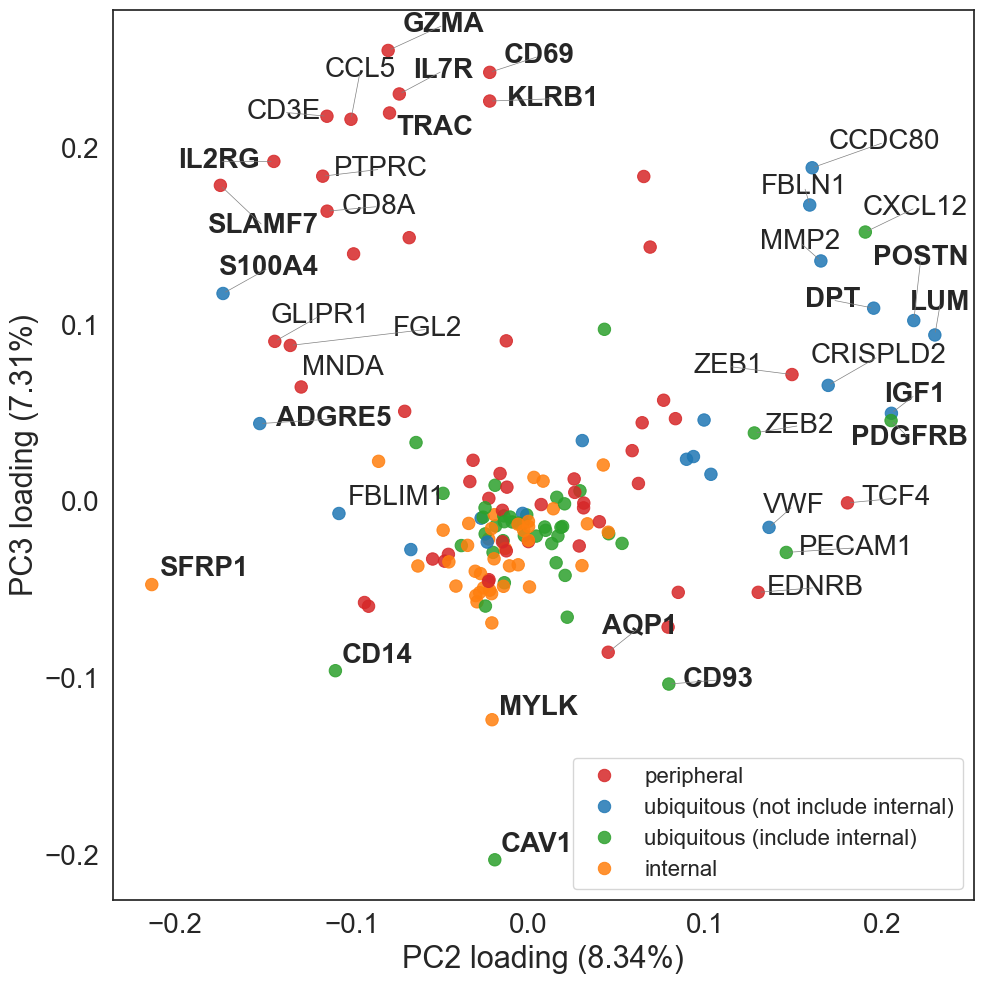

# Second figure(in the paper)
pc_df["annotation"] = pc_df["feature"].map(anno_map).fillna("unknown")
palette = { "peripheral": "tab:red", "internal": "tab:orange", "ubiquitous (include internal)": "tab:green", "ubiquitous (not include internal)": "tab:blue" }
plt.figure(figsize=(10, 10), facecolor="white")

sns.scatterplot(
    data=pc_df,
    x="PC2",
    y="PC3",
    hue="annotation",
    palette=palette,
    s=80,
    alpha=0.85,
    edgecolor=None,
)

texts = []
for _, row in pc_df.iterrows():
    gene = row["feature"]
    pc2  = row["PC2"]

    # ラベルを付ける条件
    label_top = gene in top_pca_genes
    label_pc2 = (pc2 > 0.12) or (pc2 < -0.1)

    if label_top or label_pc2:

        # フォント設定
        if label_top:
            fw = "bold"     # もともとの遺伝子 → 太字
        else:
            fw = "normal"   # PC2条件だけ → 通常

        texts.append(
            plt.text(
                row["PC2"],
                row["PC3"],
                gene,
                fontsize=20,
                fontweight=fw
            )
        )


adjust_text(
    texts,
    only_move={'points': 'y', 'text': 'xy'},
    force_text=1.5,
    force_points=1.0,
    expand_text=(1.2, 1.3),
    expand_points=(1.2, 1.3),
    arrowprops=dict(arrowstyle="-", lw=0.5, color="gray")
)

plt.xlabel(f"PC2 loading ({pc2_value}%)", fontsize=22)
plt.ylabel(f"PC3 loading ({pc3_value}%)", fontsize=22)
plt.xticks(fontsize=20)
plt.yticks(fontsize=20)
plt.legend(fontsize=16, loc="lower right")
plt.tight_layout()
plt.show()

Looks like you are using a tranform that doesn't support FancyArrowPatch, using ax.annotate instead. The arrows might strike through texts. Increasing shrinkA in arrowprops might help.

# Figure 4E DEG analysis
import scanpy as sc

region1 = (grid.obs["imagecol"].between(4800, 5900)) & (grid.obs["imagerow"].between(950, 1900))
region2 = (grid.obs["imagecol"].between(6920, 7570)) & (grid.obs["imagerow"].between(1910, 2390))
region3 = (grid.obs["imagecol"].between(5300, 6400)) & (grid.obs["imagerow"].between(3050, 3900))
region4 = (grid.obs["imagecol"].between(6050, 7050)) & (grid.obs["imagerow"].between(3910, 5100))
region5 = (grid.obs["imagecol"].between(3900, 4500)) & (grid.obs["imagerow"].between(4600, 5200))
region6 = (grid.obs["imagecol"].between(2400, 3400)) & (grid.obs["imagerow"].between(2400, 3800))

region7 = (grid.obs["imagecol"].between(2700, 4000)) & (grid.obs["imagerow"].between(750, 1690))
region8 = (grid.obs["imagecol"].between(1000, 2100)) & (grid.obs["imagerow"].between(750, 1690))
region9 = (grid.obs["imagecol"].between(400, 1500)) & (grid.obs["imagerow"].between(3600, 4200))
region10 = (grid.obs["imagecol"].between(900, 1700)) & (grid.obs["imagerow"].between(3600, 4200))


grid.obs["deg_group"] = None

# Labeling
grid.obs.loc[region1, "deg_group"] = 1
grid.obs.loc[region2, "deg_group"] = 2
grid.obs.loc[region3, "deg_group"] = 3
grid.obs.loc[region4, "deg_group"] = 4
grid.obs.loc[region5, "deg_group"] = 5
grid.obs.loc[region6, "deg_group"] = 6

grid.obs.loc[region7, "deg_group"] = 7
grid.obs.loc[region8, "deg_group"] = 8
grid.obs.loc[region9, "deg_group"] = 9
grid.obs.loc[region10, "deg_group"] = 10

grid.obs["deg_group_merged"] = grid.obs["deg_group"].map({
    1: "A",
    2: "A",
    3: "A",
    4: "A",
    5: "A",
    6: "A",

    7: "B",
    8: "B",
    9: "B",
    10: "B",
})


# Extract only valid cells
grid_deg = grid[grid.obs["deg_group_merged"].notna()].copy()


sc.tl.rank_genes_groups(
    grid_deg,
    groupby="deg_group_merged",
    groups=["B"],
    reference="A",
    method="wilcoxon"
)

deg_df = sc.get.rank_genes_groups_df(grid_deg, group="B")

It seems you use rank_genes_groups on the raw count data. Please logarithmize your data before calling rank_genes_groups.

# Figure 4G

adata_sub = grid_deg
use_genes = ['PELI1', 'FOXA1', 'APOC1', 'NARS', 'CXCL12', 'HOOK2', 'ANKRD30A', 'CCND1', 'TCF4', 'OCIAD2', 'SCD', 'CD69', 'TRAC', 'LYPD3', 'AQP1', 'KARS', 'LUM', 'RAB30', 'TACSTD2', 'SH3YL1', 'IGF1', 'GLIPR1', 'EGFR', 'PDGFRB', 'ACTA2', 'KRT7', 'FAM107B', 'CD3E', 'CYTIP', 'POLR2J3', 'BACE2', 'PDK4', 'FBLN1', 'DSP', 'ENAH', 'VOPP1', 'SVIL', 'KLRB1', 'FSTL3', 'TRIB1', 'KRT8', 'CLDN4', 'ADGRE5', 'AKR1C1', 'EPCAM', 'HDC', 'PPARG', 'TRAPPC3', 'DUSP5', 'CCL5', 'CXCR4', 'IL7R', 'SERHL2', 'LYZ', 'TFAP2A', 'AIF1', 'FASN', 'ANKRD28', 'ITM2C', 'LDHB', 'ZEB2', 'C1QA', 'CD4', 'SEC24A', 'FCER1G', 'ERN1', 'SLAMF7', 'CTTN', 'MRC1', 'CCPG1', 'MLPH', 'RUNX1', 'ZNF562', 'CLEC14A', 'SMS', 'CEACAM6', 'ACTG2', 'PECAM1', 'PIM1', 'CCDC6', 'MMP2', 'DSC2', 'HAVCR2', 'TCIM', 'ITGAM', 'CD68', 'PTGDS', 'QARS', 'MYO5B', 'SDC4', 'IL2RG', 'PTPRC', 'WARS', 'MNDA', 'FLNB', 'ZEB1', 'DST', 'FGL2', 'PCLAF', 'AR', 'S100A14', 'TENT5C', 'LARS', 'BASP1', 'CD8A', 'FBLIM1', 'S100A4', 'HMGA1', 'JUP', 'ITGAX', 'CD3G', 'ERBB2', 'SEC11C', 'PTN', 'PRDM1', 'GPR183', 'MDM2', 'ELF3', 'EDNRB', 'CAV1', 'SERPINB9', 'DNTTIP1', 'MAP3K8', 'SLC5A6', 'CD9', 'CCDC80', 'SQLE', 'GATA3', 'BTNL9', 'PDE4A', 'SFRP1', 'RAMP2', 'PDGFRA', 'MYLK', 'CD14', 'IGSF6', 'VWF', 'CD93', 'DPT', 'POSTN', 'ADAM9', 'TOP2A', 'TPD52', 'HOXD8', 'CD247', 'SFRP4', 'SERPINA3', 'CD163', 'TRAF4', 'FCGR3A', 'KLF5', 'GZMA', 'C1QC', 'LPXN', 'CDH1', 'CRISPLD2', 'TOMM7', 'TUBA4A']

# ===========================================
# 0. Extract DE results and subset
# ===========================================
deg_df = sc.get.rank_genes_groups_df(adata_sub, group="B")
deg_df = deg_df[deg_df["names"].isin(use_genes)].copy()
deg = deg_df.copy()

# ===========================================
# 1. logFC and -log10(pval) (handle p=0)
# ===========================================
deg["logFC"] = deg["logfoldchanges"]

eps = 1e-300
deg["pvals_adj_clipped"] = deg["pvals_adj"].clip(lower=eps)
deg["-log10(pval)"] = -np.log10(deg["pvals_adj_clipped"])

# ===========================================
# 2. Color labels: up / down / ns
# ===========================================
def classify_gene(row):
    if row["pvals_adj"] < 0.05 and row["logFC"] > 2:
        return "up"
    elif row["pvals_adj"] < 0.05 and row["logFC"] < -2:
        return "down"
    else:
        return "ns"

deg["color"] = deg.apply(classify_gene, axis=1)
color_map = {"up": "red", "down": "blue", "ns": "gray"}

# ===========================================
# 3. Genes to label
# ===========================================
label_df = deg[
    (deg["color"].isin(["up", "down"])) &
    (deg["-log10(pval)"] >= 10)
]

force_labels = ["SFRP1"]
force_df = deg[deg["names"].isin(force_labels)]

high_thr = label_df["-log10(pval)"].quantile(0.8)

# ===========================================
# 4. Main plot
# ===========================================
fig, ax = plt.subplots(figsize=(15, 15))

sns.scatterplot(
    data=deg,
    x="logFC",
    y="-log10(pval)",
    hue="color",
    palette=color_map,
    edgecolor=None,
    s=300,
    alpha=0.8,
    legend=False,
    ax=ax
)

# ===========================================
# 5. Place labels (store texts and original point coordinates)
# ===========================================
texts = []
anchors_x = []   # point x coordinates (logFC)
anchors_y = []   # point y coordinates (-log10p)

# 5-1. Regular labels
for _, row in label_df.iterrows():
    gene = row["names"]
    x0 = row["logFC"]
    y0 = row["-log10(pval)"]

    # Initial label position
    x = x0
    y = y0 + 2
    if y0 >= high_thr:
        y = y0 - 20

    t = ax.text(
        x, y, gene,
        fontsize=30,
        ha='center',
        va='bottom'
    )
    texts.append(t)
    anchors_x.append(x0)
    anchors_y.append(y0)

# 5-2. Forced labels
already = set(label_df["names"])
for _, row in force_df.iterrows():
    gene = row["names"]
    if gene in already:
        continue

    x0 = row["logFC"]
    y0 = row["-log10(pval)"]

    x = x0
    y = y0 + 2
    if y0 >= high_thr:
        y = y0 - 20

    t = ax.text(
        x, y, gene,
        fontsize=30,
        ha='center',
        va='bottom',
        color="black"
    )
    texts.append(t)
    anchors_x.append(x0)
    anchors_y.append(y0)

# ===========================================
# 6. Set axis limits
# ===========================================
xmin = deg["logFC"].min()
xmax = deg["logFC"].max()
dx = (xmax - xmin) * 0.05 if xmax > xmin else 1.0
ax.set_xlim(xmin - dx, xmax + dx)

#ymax_data = deg["-log10(pval)"].max()
#ymax0 = max(ymax_data, max(anchors_y) if anchors_y else ymax_data)
#ax.set_ylim(0, ymax0 + 40)

ymax_data = deg["-log10(pval)"].max()
headroom = max(50, ymax_data * 0.1)
ax.set_ylim(0, ymax_data + headroom)

# ===========================================
# 7. Move labels
# ===========================================
adjust_text(
    texts,
    ax=ax,
    only_move={'text': 'xy'},
    expand_text=(1.2, 1.2),
    expand_points=(1.1, 1.2),
    force_text=1.0,
    force_points=0.3,
    expand_axes=True,
    lim=500
)

# ===========================================
# 8. Draw connector lines from points to final label positions
# ===========================================
for t, x0, y0 in zip(texts, anchors_x, anchors_y):
    tx, ty = t.get_position()
    ax.plot([x0, tx], [y0, ty], '-', color='gray', lw=1)

# ===========================================
# 9. Threshold lines and styling
# ===========================================
ax.axvline(x=2,  color='black', linestyle='--', lw=0.5)
ax.axvline(x=-2, color='black', linestyle='--', lw=0.5)
ax.axhline(y=-np.log10(0.05), color='black', linestyle='--', lw=0.5)

ax.set_xlabel("log2 Fold Change", fontsize=30)
ax.set_ylabel("-log10 Adjusted P-value", fontsize=30)
ax.tick_params(axis='both', labelsize=25)

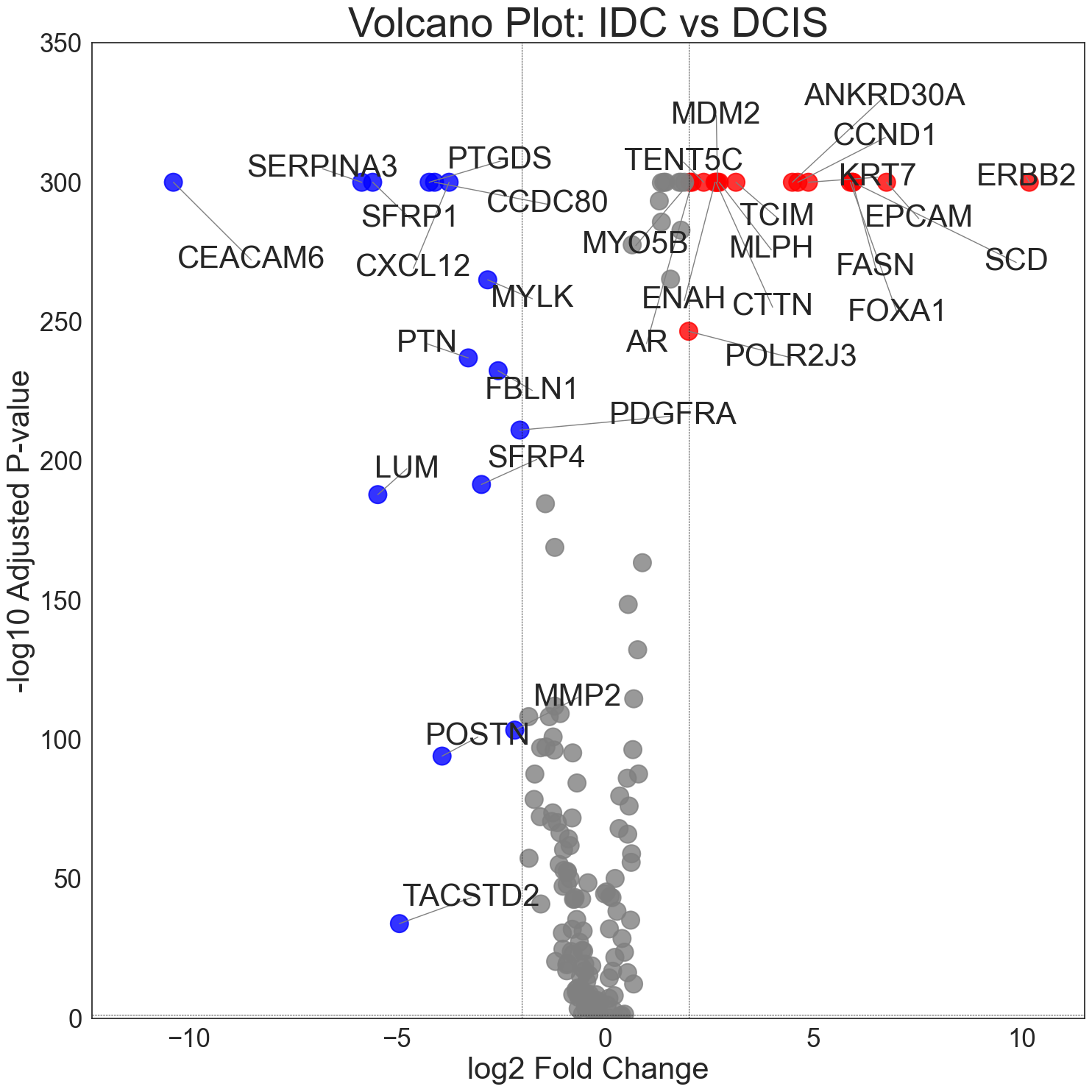

ax.set_title("Volcano Plot: IDC vs DCIS", fontsize=40)
fig.tight_layout()
plt.show()
